V4

Frankly, I had been too busy working to remember to take more than a measly three photos.

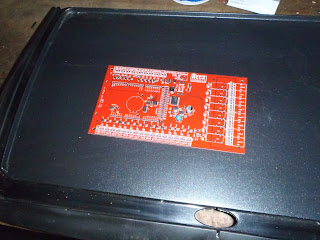

Here is one of the boreds baking:

Secondly:

This is one of the "finished" products. I wrote "finished" in quotes as the circuit is complete but, we still needed to attach a few things to the header. I am SO pleased that it worked BEAUTIFULLY the first time! To be fair, I had two very experienced professionals look it over before we checked its functionality and, as a result, I did clean up some of the surface solders. When the second guy grabbed it from me and said that he was "going to take it under the microscope," I didn't know he was being LITERAL! Lol  : /

Lastly:

Interesting fact: as the boards bake, they get redder; they go from a bright red to a deep red!

Now, to Wiki the instructions so that others may build their own version (which will not get finished by today-- I'm exhausted)!

Stay tuned for next week when I learn use Solid Works to print something out using the 3D printer! Any ideas as to what I should design?

Some of The Equipment and Other Related Things

The soldering paste and applicator:

The soldering iron I have yet to name. Any suggestions?

The only soldering tip which makes one enthusiastic about soldering-- in my experience-- as compared with "lesser" tips  ;)   :

The soldering iron I so fondly refer to as: the "blow dryer":

A Geiger counter which may be used on a future project (the indeterminate factor being whether THIS particular radiation detector is going to be used). No, we are not going to be dealing with hazardous materials.  ;)

Whether you call it a SUPER capacitor or an ULTRA capacitor-- it IS EXTRAordianry!

Whereas TYPICAL capacitors are of the order micro- (10^-6) or pico- (10^-12) THIS capacitor is of the order kilo- (10^3). That is QUITE the difference! This fella' is being used in a design to substantially increase the efficiency of trains.

More Prototyping

First, I built the circuit on a bread board using "macroscopic" parts ("macroscopic" is my personal colloquialism). See below:

What the circuit was designed for:

This is a simple blink circuit. Suppose the LED on the right blinks first, for x

amount of time. The LED on the left will blink for x amount of time once the

right LED ceases to blink. This pattern repeats.

The purpose of it's creation was two-fold. Firstly, there was a surplus of LEDs,

resistor, and capacitors. Secondly, this particular circuit is very forgiving for

the novice; It's pretty tough to blow out the LEDS, you can interchange

resistors and capacitors and get the same circuit behavior (so long as:

 tau = R*C = constant), and you can experiment to come to understand

RC-circuit behavior by changing out resistors and/or capacitors, in a

thoughtful and mindful way. Thus, the learner's kit was born and will be

on sale in a matter of time.

To ensure that the prototype circuit was identical to my bread board circuit, I mapped out what I had (i.e. prototype) against what I wanted (i.e. bread board circuit):

The prototype (incomplete at this point in time):

To get a "feel" for the contrast between the "macroscopic" and "infinitesimal" parts I deal with, here is a photo comparing both sizes of transistors:

Needless to say, it is a good thing that the "microscope" pieces are so inexpensive, seeing as how easy it is to loose one of them!    : /

This is a picture of the Red Bull I was consuming while working:

( I felt obligated to show my respect to such a precious thing, as one of my sacred source of caffeine!)

It is interesting to note that the transistors were SO small I had to manually cut two of the the stripes of medal backings with an exacto-knife (remember: this is the PROTOTYPE. The official kits are made using machines)! Good thing I am endowed with patience-- not that it wasn't tried!

More on THIS to come (the circuit, not the Red Bull-- well, maybe that too  ;)   ! ).

Prototyping

Early on, when I began my internship at ACCX Products, inc.(which you can access HERE: http://www.accxproducts.com/content/ )  not only did I learn how to do surface soldering but, I got to build the prototype board. Here is a picture of me working on it:

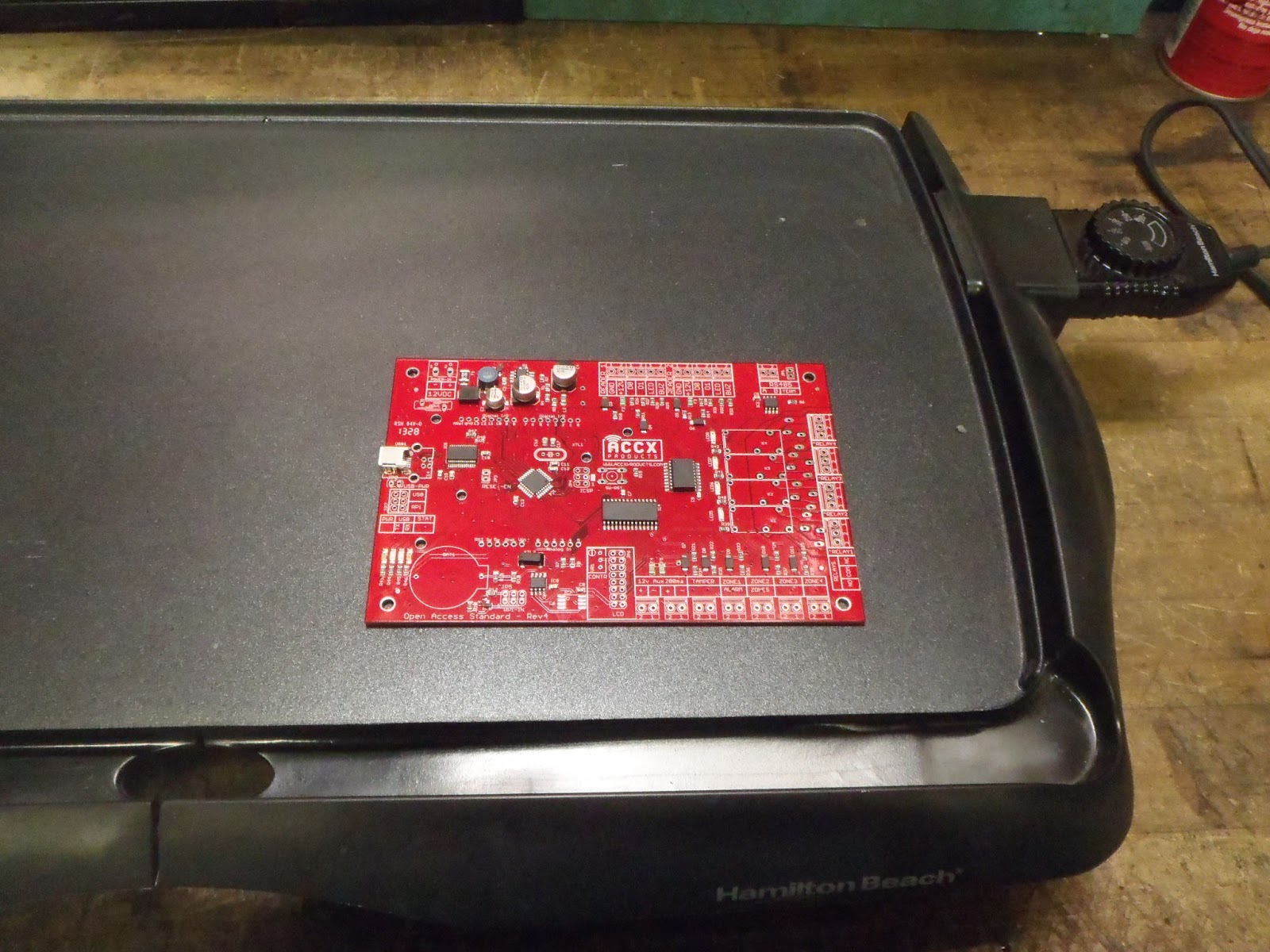

Shortly thereafter, I "baked" the circuit board. I had never heard of such a thing, previously! But, when you have a high quality fiber glass circuit board, you are doing surface mount soldering (complete with soldering paste), and the parts you are using are something like infinitesimal in size, it is the optimal choice! Here is a picture of the board baking to completion:

As this is my first blog EVER, I hadn't the foresight to take a picture of the soldering paste. Consequently, I will post a picture of the soldering paste sometime next week ( July 18th-July 19th). The board worked beautifully, by-the-way ;)

Prior to all of this I had practiced surface mount soldering with a never-before-used (by ME, that is) hot air soldering iron (which I lovingly refer to as: the "blow dryer"). In preparation of the above prototyping, I should mention.

Also, because I love it so much, I will post pictures of the soldering iron which I love very dearly. Not just because of its NASA-level quality but, also because of the soldering head I use on it. I think I may name him, I love him so much!  : /
